Hub Motor

Sensor connector wires

• Red – Positive 4.5 to 5 volts DC
• Black – Negative
• Blue – Hall sensor output
• Green – Hall sensor output
• Blue – Hall sensor output
• White – Speed sensor signal

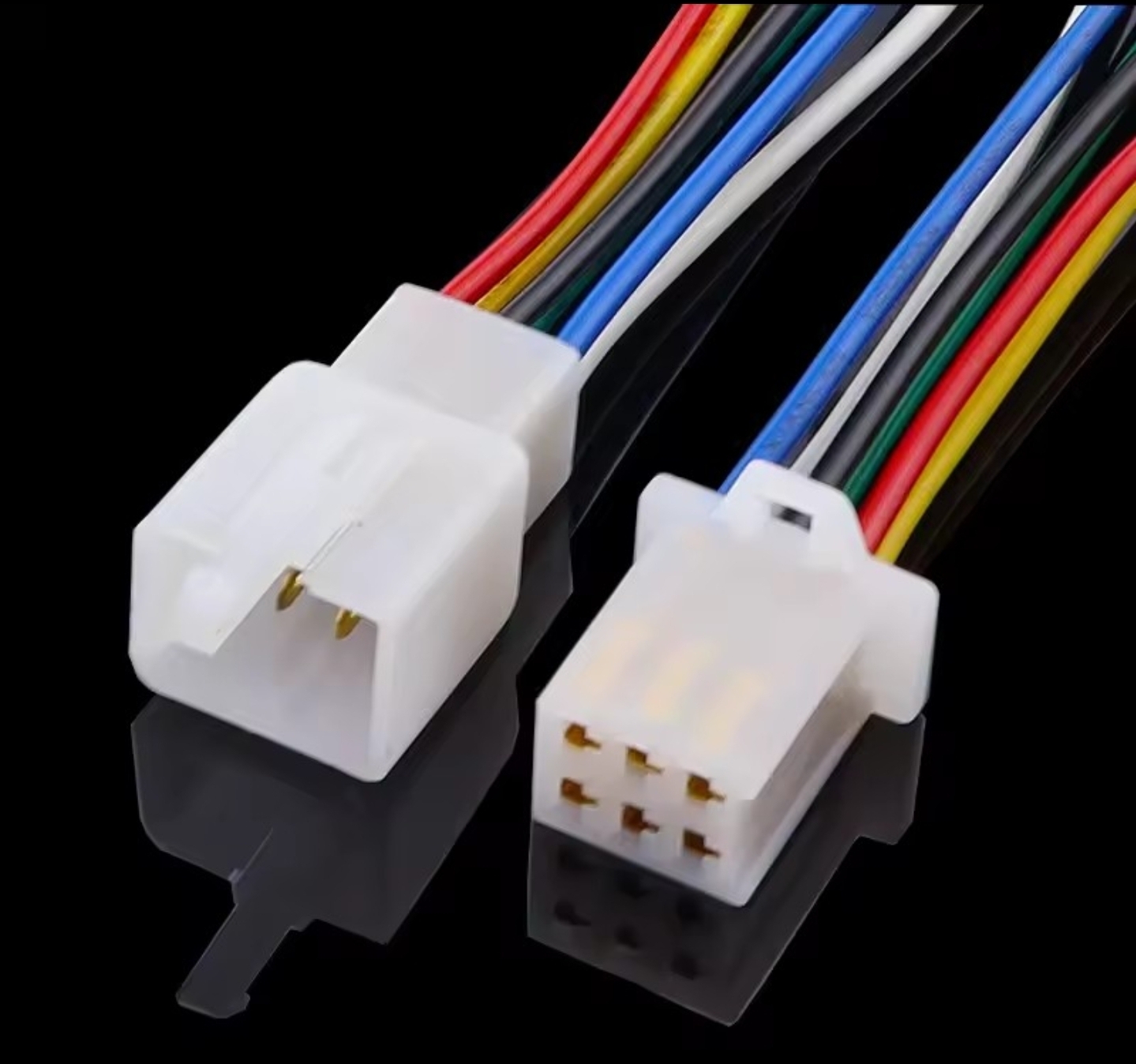

6 Pin Sensor connector – Voltrium front motor

If you purchase the 6 pin connector as shown on the right then be aware that the pinout (coloured wires) will be wrong, you can remove the pins and reinsert to suit the Voltrium (important: do not plug in until you check and recheck the correct pinout).

Front hub motor connections
